Can grocery reserve use this LIFO arrangement?

Only where the required date or lot selection allows it. For a Cleveland distributor, some reserve groups may be appropriate while strict-rotation products need pallet flow or direct access. We separate those categories before using dense lane counts in the drawing.

Does cold storage require a different specification?

Provide the operating temperature with pallet dimensions and weights. Cart and rail components are selected for the cold-service conditions, not assumed interchangeable with a dry-room system. Door access and the forklift working space also belong in the cooler or freezer layout.

How do the industrial flats affect block placement?

In a Cuyahoga Valley building, measured columns and occupied transfer routes determine usable storage rectangles. A deeper lane is helpful only if its working face remains accessible. We compare orientations and lift heights before deciding the level count or lane depth.

Should Collinwood-area reserve use drive-in instead?

Compare pallets per SKU, product variety and the handling sequence. Drive-in sends the truck into a lane for bulk groups; cart lanes are serviced from the aisle with separate SKU assignments by level. Selective rack remains worth comparing where individual access outweighs density.

Pushback Rack system inside a Ohio warehouse

Cleveland, Ohio

Pushback Rack in Cleveland, OH

Name: Cleveland Pallet Rack
Address: 11811 Shaker Blvd., Cleveland, OH, 44120, US
Telephone: (216) 434-6607
Price range: $$

Pushback rack in Cleveland serves the grocery, regional 3PL and industrial operations that need dense pallet storage with mixed SKUs. Pallets sit on nested carts that roll along inclined lane rails, and a single aisle handles both movements, so lanes run last-in, first-out.

From the Cuyahoga Valley flats to the Collinwood rail corridor, many Cleveland buildings pair tight footprints with high pallet counts. One aisle serving deep lanes means far fewer aisles than a selective layout, and pushback pallet rack turns that difference into usable positions.

(216) 434-6607

How Pushback Racking Adds Density

Gravity brings the next pallet to the face. Design work centers on depth, level count and SKU choice.

Nested running carts

Pallets bear on carts, with the cart wheels traveling along rails pitched toward the aisle. The load already stored moves rearward when the next pallet is placed into the lane.

Rotation at one opening

The newest pallet leaves first because loading and retrieval share a face. LIFO is checked against the stock rules before allocating food, medical supply or other dated products to the block.

Inventory-led depth

Two to six positions per lane can be compared with the actual pallet groups. Different levels retain separate SKU assignments, while each lane needs a consistent product and acceptable withdrawal sequence.

Supports and additions

A conversion requires the existing bay identification and a review of beams, frames and connections. The cart, rail and supporting structure are sized for the intended loads and level arrangement together.

Pushback Rack for Cleveland's Mixed Storage

The decision starts with pallets per SKU. For products running three to six pallets deep, one pushback lane holds the whole group from a single aisle position, and every level can carry its own SKU. Lane depth comes from your real inventory counts, not a template.

Cleveland Pallet Rack is a division of Warehouse Equipment & Supplies Co., supplying and installing rack since 1997. Your proposal lists frames, beams, rails, carts and accessories as new material, drawn from your pallet dimensions and SKU counts.

Free warehouse consultation

CAD layout with position counts

Installation by experienced crews we schedule and manage

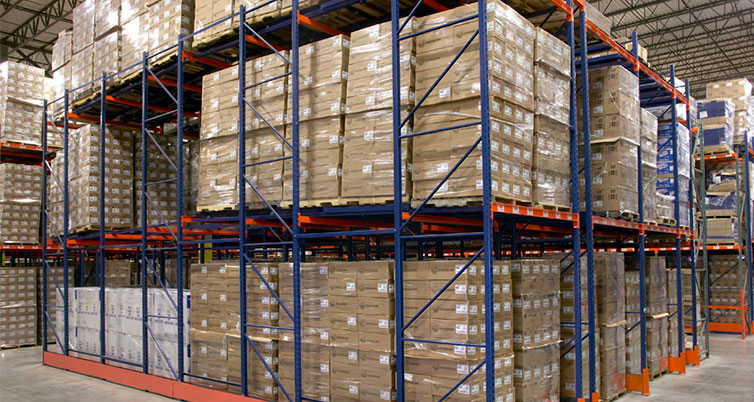

High-density pushback rack lanes loaded with pallets

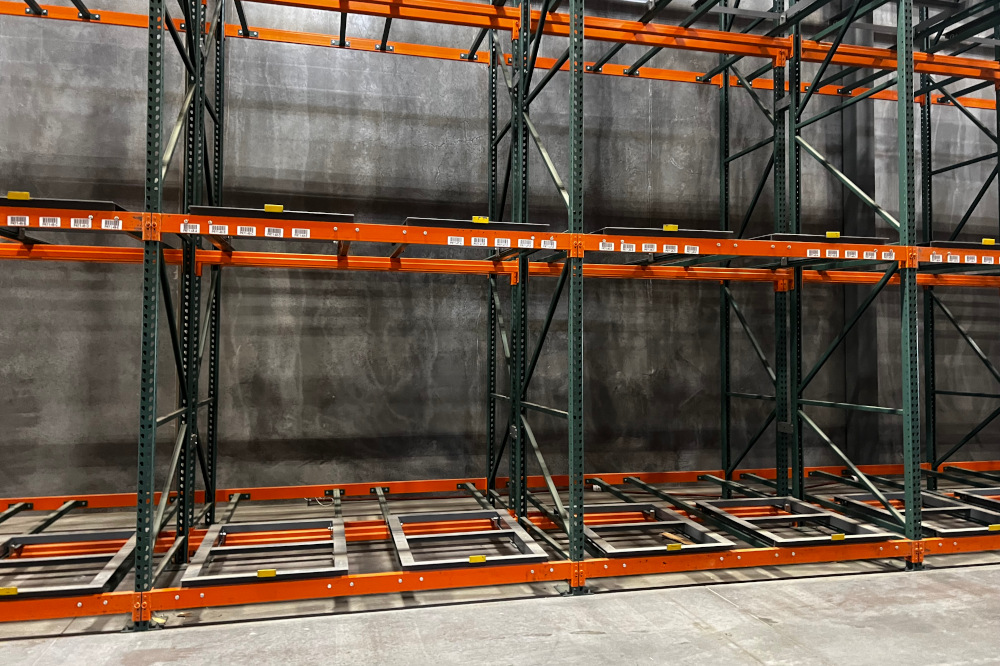

Pushback pallet racking showing cart rails and load beams

Cleveland Buildings and Cold Storage

Grocery and food distribution around the flats and the I-90 corridor includes cooler and freezer buildings, where operating temperature is part of component selection. Pushback components are selected for the temperature in cold service. Older multi-story floors elsewhere in the city need column and load and bay-layout reviews before depth and level counts are fixed.

steel processing

regional distribution

Pushback Rack Design and Installation in Cleveland

The consultation gathers your SKU list, pallet dimensions and weights, and typical pallets per SKU. For cold storage, temperature range joins that list before design begins.

The layout drawing shows lane counts, depths and aisle positions against measured columns and dock positions. The forklift never enters the lane as it would in drive-in, and each level can carry its own SKU.

Experienced installation crews we schedule and manage build the block, hang the rails and carts, and anchor the structure to the floor. A load and slotting map is handed over for your team to maintain.

Pushback pallet rack should be evaluated separately for each inventory category. A grocery label does not establish the rotation rule, just as a 3PL label does not establish the number of pallets per SKU. We review actual withdrawal requirements and pallet support, then compare occupied positions rather than nominal capacity alone. Fewer aisles can concentrate reserve within a measured footprint, but the truck still needs room to turn and place loads at every intended level. Beam spacing, frame height and rail support follow the load envelope and lift reach.

More dense storage pages for Cleveland operations:

Cleveland warehouse storage Pushback system overview Cleveland pallet flow lanes Drive-in options in Cleveland

Three to six pallets per SKU

Grocery and food reserve storage

Cooler and freezer density

Assessed additions to existing bays

Call (216) 434-6607

Recent Installations

Racking projects completed for warehouses across Greater Cleveland and Northeast Ohio.

View More Projects

Get a Pushback Rack Quote for Your Cleveland Warehouse

Request a Cleveland review with SKU quantities, stock-rotation rules and any cold-room temperatures. We will compare the suitable lane groups and provide a measured layout with an itemized quotation.
