Can long building material go directly on pallet rollers?

Not unless it forms an approved stable unit load on a compatible pallet base. Loose lengths need appropriate support outside this system. Record package boundaries and overhang so a forklift-carried bundle is not mistaken for a roller-compatible pallet.

Why does package overhang matter at the pick face?

It can interfere with lane hardware, adjacent loads or the withdrawal movement. Measure the full carried package, not only the base. Include wrapping and projecting material in the review so the approved arrangement reflects the unit operators actually handle.

How should Lorain sites separate long-stock traffic?

Mark the long-material route beside the proposed replenishment and withdrawal aisles. Avoid crossing movements where the carried lengths need turning space. The layout should preserve both handling patterns rather than allowing one active operation to block the other.

Do dense pallets require a different travel check?

Their braking behavior must be assessed within the approved load range. Provide actual gross weights and representative loads. Comparing a dense package with the lightest routine pallet helps establish whether one lane specification can control both without unsuitable travel.

Pallet Flow Rack system inside a Ohio warehouse

Lorain, Ohio

Pallet Flow Rack in Lorain, OH

Name: Cleveland Pallet Rack
Address: 11811 Shaker Blvd., Cleveland, OH, 44120, US
Telephone: (216) 434-6607
Price range: $$

Pallet flow rack in Lorain gives repeated packaged loads a FIFO route from receiving to withdrawal. Pallets travel on inclined rollers, with loading on one side and picking on the other. Dedicated lanes suit date-sensitive batches or recurring supply quantities when pallet construction is consistent and the entry sequence reflects the required stock rotation.

Metalworking and building-products inventory can include long or irregular material that does not belong on pallet rollers. Separate those loads from unitized packages at the beginning of the review. A gravity flow rack proposal should explain which pallets will travel as complete loads and which material families need another storage arrangement.

(216) 434-6607

Pallet Flow Rack for Lorain Packaged Inventory

Useful lane capacity depends on how many pallets of one item are normally held. A deep row assigned to an occasional building-product package may spend much of its space empty. Compare batch quantities, pickup frequency and the number of active SKUs before committing the available footprint to dedicated lanes.

We are the Cleveland division of Warehouse Equipment & Supplies Co., a business supplying and installing warehouse equipment since 1997. We select new pallet flow rack material for the agreed unit loads and layout, keeping roller suitability separate from the question of how other metal or building stock should be stored.

Free warehouse consultation

CAD layout with position counts

Installation by experienced crews we schedule and manage

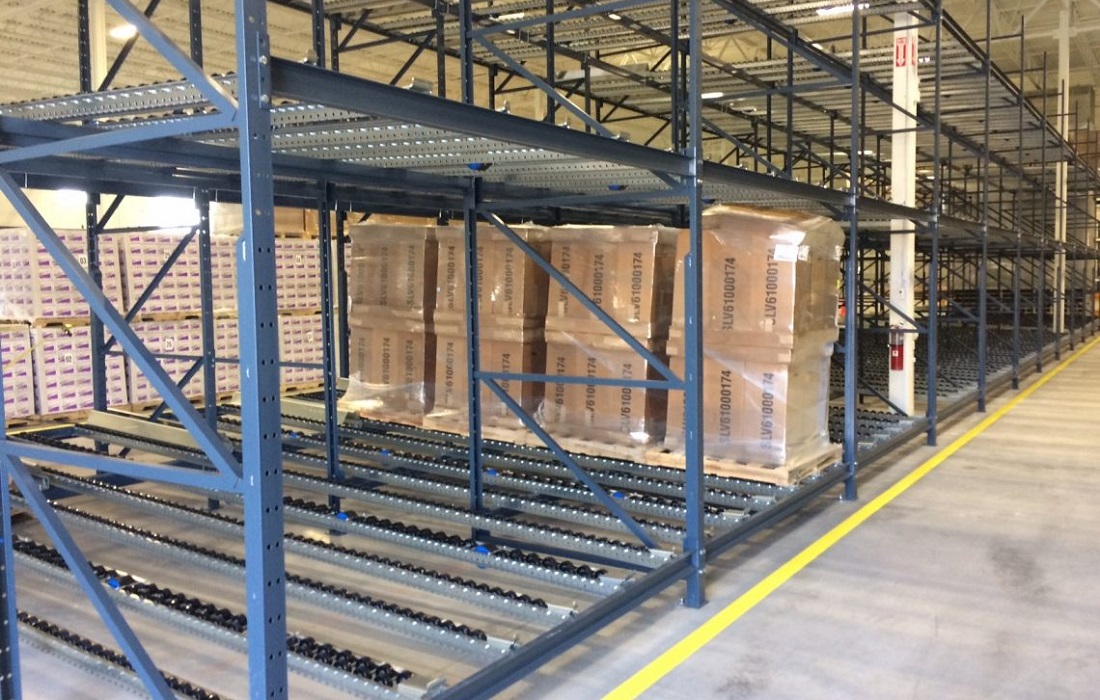

Pallet flow rack lanes with gravity rollers installed

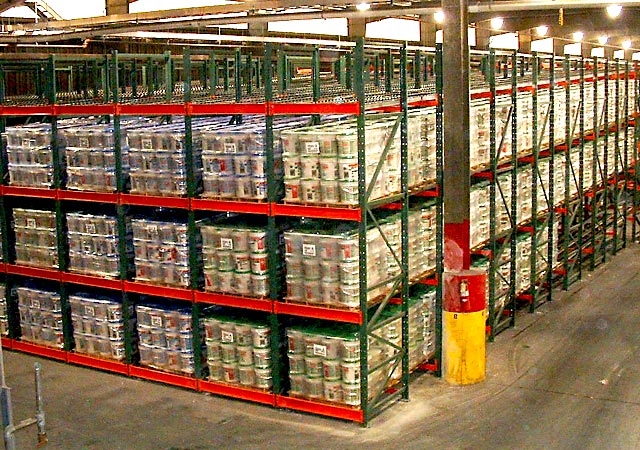

Flow racking system loaded with pallets at the pick face

Lorain Receiving and Inventory Patterns

The Black River industrial corridor and SR-2 provide local context for Lorain metalworking and building-products distribution. Older lakefront manufacturing areas can combine varied door approaches with different material lengths inside one footprint. Keep the pallet replenishment route away from long-stock handling. Measure the actual storage space, including column lines and turning room, before assuming both roller faces can remain accessible.

metalworking

building-products distribution

Gravity Flow Rack Support for Dense and Bulky Pallets

Pallet flow racking must support the accepted base continuously enough for stable travel while regulating its approach to the withdrawal position. Dense packages require a documented load range, not a visual estimate.

Identify complete unit-load boundaries

Record pallet length, width and all package overhang. A bulky wrapped package may intrude beyond the base and contact lane components or neighboring loads.

Match contacts to bottom construction

The roller layout follows the underside and the direction of travel. Mixed wooden base patterns can change contact even at the same nominal size.

Check dense loads under braking

Speed controllers and brakes restrain pallets across the approved mass range. Establish the heaviest recurring package and the lightest unit that must still advance.

Reserve space at the leading pallet

Where separators are included, confirm that following loads remain isolated while the first pallet is lifted. The withdrawal aisle must allow the truck to align and leave with the carried package.

Pallet Flow Racking Layouts With Separate Material Routes

Gather a package schedule with gross weights, base photographs, quantities and required rotation. Identify long stock or awkward assemblies explicitly so they do not appear in the gravity-lane pallet count merely because a truck can carry them.

We map the receiving face, withdrawal face and nearby material routes on a CAD layout. The storage mix can leave direct-access positions for exceptions while repeated unit loads use rollers. The itemized quote describes new rack, roller assemblies, controls, protection and installation for that arrangement.

Experienced installation crews we schedule and manage coordinate delivery staging and assembly with the agreed building access. Once the structure is anchored to the floor, representative packages are checked for tracking, speed control and withdrawal. Handover explains pallet acceptance and lane assignments so changes in building-product packaging trigger a review before loading.

Compare the storage options below against the inventory planned for your Lorain building.

Lorain warehouse storage Pallet flow system overview Pushback options in Lorain Lorain carton picking

Dated pallets with defined rotation rules

Repeated shipments of the same SKU

Separated receiving and retrieval movements

Unit loads approved for roller travel

Call (216) 434-6607

Recent Installations

Racking projects completed for warehouses across Greater Cleveland and Northeast Ohio.

View More Projects

Get a Pallet Flow Rack Quote for Your Lorain Warehouse

For a Lorain quote, send photographs showing the full package and its underside together. That helps a pallet flow rack review separate roller-compatible unit loads from long or irregular stock requiring another approach.
